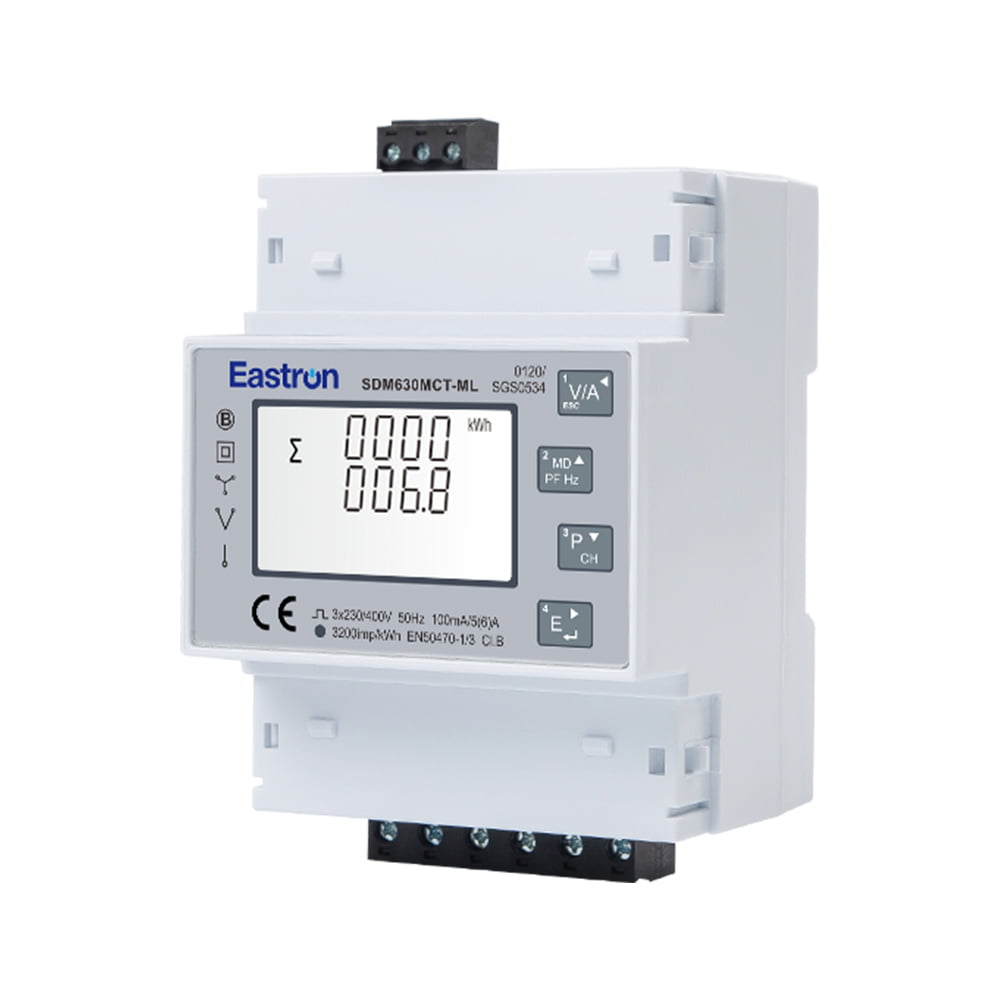

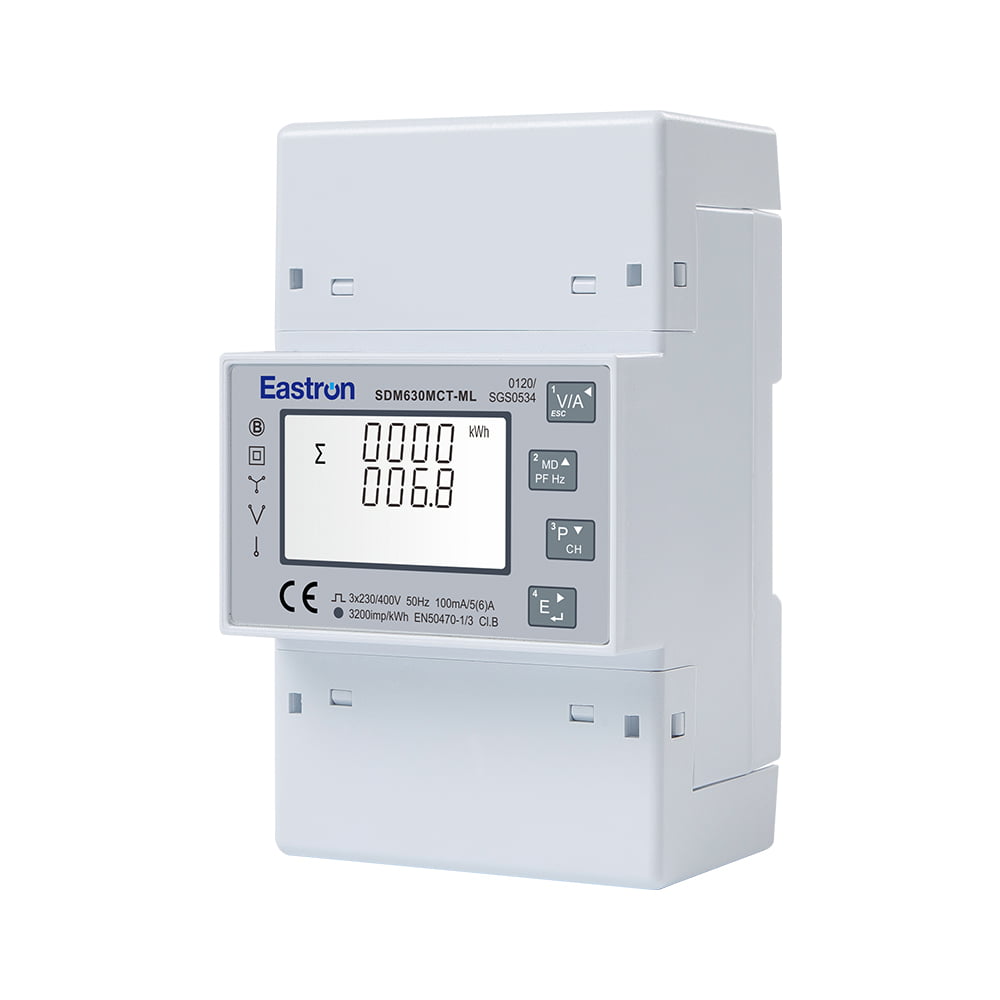

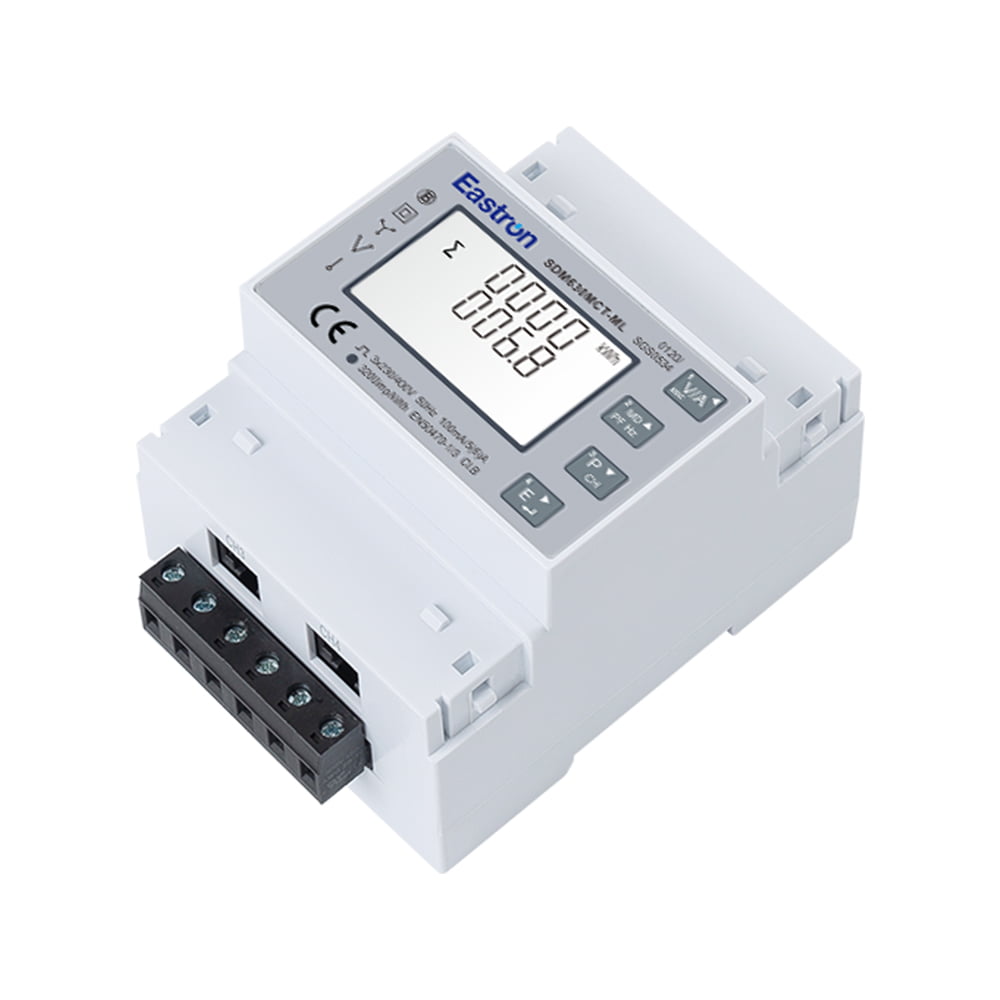

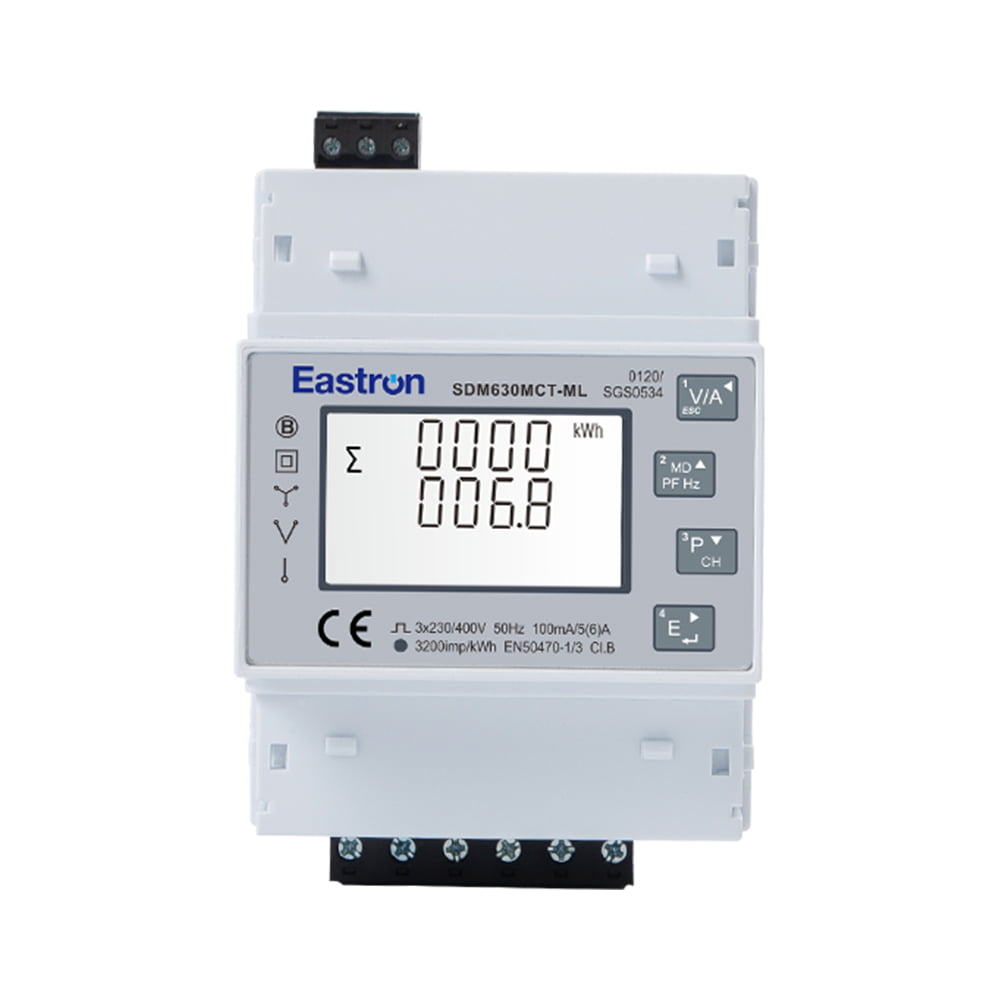

SDM630MCT-ML是一款用于插拔式方案 四回路 RS485 Modbus 三相多功能电能表。该表可用于1p2w、1p3w、3p3w和3p4w电网，可测量包括电压、电流、功率、PF、THD、频率、需求、能量等重要电力参数。
该表可作为4路三相电表或12路单相电表使用。
通过RJ端口接线，该表提供了一个简单的插拔式解决方案，节省了80%的安装时间，避免了接线错误，这使得它成为数据中心多回路计量的完美选择。内置的接口支持RS485 Modbus RTU通讯。
SDM630CT-ML已经获得欧盟MID认证，符合2014/32/EU的要求。
|
Electrical Characteristics |
||
|
Type of Measurement |
RMS including harmonics on three phase AC system (3P, 3P+N) |
|
|
Measurement Accuracy |
Power |
0.5% of range maximum |
|
Active Energy |
IEC 62053-22 Class 0.5S, IEC 62053-21 Class 1.0 |
|
|
Reactive Energy |
IEC62053-23 Class 2 |
|
|
Frequency |
0.2% of mid-frequency |
|
|
Current |
0.5% of range maximum |
|
|
Voltage |
0.5% of range maximum |
|
|
Power Factor |
1% of unity (0.01) |
|
|
Input & Output |
|||
|
Input |
Current |
CT Secondary |
100mA/ 100mV |
|
CT Primary |
1-9999A |
||
|
Voltage |
Rated Voltage (Un) |
230V L-N / 120V L-N |
|
|
Operational Voltage |
80%~120% of Un |
||
|
Output |
SDM630MCT-ML/3L/2L-1L |
RS485 Modbus (RJ45 port) |
|
|
SDM630MCT-ML-TCP |
Ethernet Modbus TCP |
||
|
RS485/Ethernet Modbus Communications |
|
|
Communication Address |
1~247 |
|
Transmission Distance |
1000m Maximum |
|
Transmission Speed |
1200bps~38400bps |
|
Parity |
None (default), Odd, Even |
|
Stop Bits |
1 or 2 |
